89 6009

Year of manufacture 1902
Manufacturer Humboldt (Cöln-Kalk)
Manufacturing number 135
Wheel arrangement C n2t
Genus Gt 33.10
Type Prussian T 3
Owner DB Museum Nuremberg
Museum's vehicle since 1971
Accessibility always

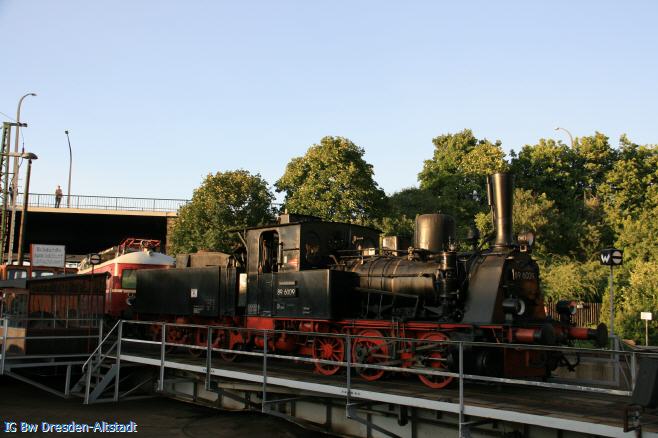

89 6009-1

Technical Data

Length over buffers (mm) 14 368
Complete wheelbase (mm) 3 000
Diameter of driving wheel (mm) 1 100
Diameter of running wheel (front) (mm)
Diameter of running wheel (back) (mm)
Height over rail (mm)
Empty weight (engine + tender) (t) 43,65
Operating weight (including all supplies) (t) 63,45
Number of heating pipes   132
Condensating surface (m²) 59,2
Grill surface (m²) 1,35
Feeding device Injector (l/min)
  Piston feed pump (l/min)
Maximum speed (km/h) 40
Power (horse powers) 290
Brake type
Axle load (t)
Maximum tractive effort on starting (Mp)
Boiler pressure (kp/cm²) 12
Diameter high pressure cylinder (mm) 350
Piston stroke (mm) 550
Coal reservoir (t) 5
Water reservoir (m³) 12
Track gauge (mm) 1 435

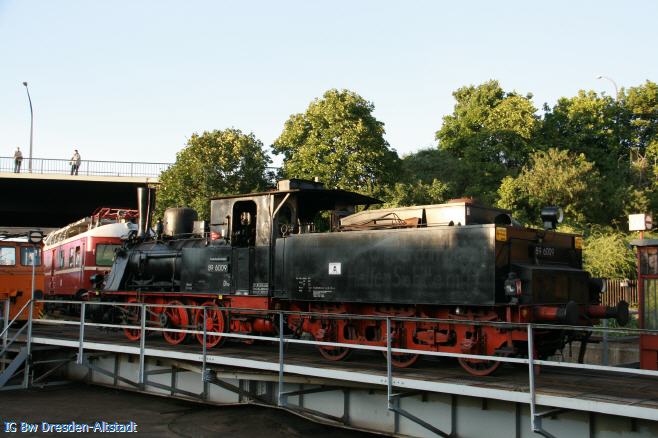

89 6009-2



A part of the history

Company Humbolt (Cologne-Kalk) Serial No. "1808 Berlin"   1902
Changing to type T3 "6146 Berlin"   1906
Bw Leipzig West (89 7403) on 1925-07-08
Sachsenwerk Stendal on 1931-07-09
Kleinbahn AG
Heudeber-Mattierzoll
on 1931-08-02
Changing to No. 89 6009 on 1949-12-12
Bw Halberstadt after 1950-01-10
Operating on "Stammstrecke"     until 1951-12-31
Lokbf. Bernburg
(Small maintainance)
from 1952-09-17 until 1952-11-10
Raw Blankenburg
(Fixing piston break)
  Winter 1952/1953
Raw Blankenburg
(Maintainance, adding tender)
from 1953-05-09 until 1953-11-11
Lokbf. Bernburg after 1953-11-12
Raw Blankenburg
(Small maintainance)
from 1956-12-21 until 1957-03-30
Bw Wriezen after 1957-04-01
Raw Karl-Marx-Stadt
(Maintainance)
from 1958-12-31 until 1959-04-27
Last regular maintainance from 1966-01-05 until 1966-03-19
Bw Salzwedel from 1966-11-11 until 1967-03-14
Bw Oebisfelde (as heating loco) from 1967-03-05 until 1969-10-08
Bw Halberstadt
(small maintainance on boiler)
from 1967-06-21 until 1967-07-18
Bw Eisleben after 1969-10-09
Verkehrsmuseum Dresden since 1977-01-01
DB Museum Nürnberg /
IG Bw Dresden-Altstadt
