ASF

Year of manufacture 1984
Manufacturer VEB Lokomotivbau - Elektrotechnische Werke "Hans Beimler"
Manufacturing number 204 41 337
Wheel arrangement B
Genus EL 16/04
Type
Owner IG Bw Dresden-Altstadt e.V.
Museum's vehicle since
Accessibility always
ASF-gelb

Technical Data

Length over buffers (mm) 3 100
Complete wheelbase (mm)
Diameter of driving wheel (mm)
Height over rail (mm) 2 800
Operating weight (including all supplies) (t) 12
Maximum speed (km/h) 6
Output per hour (kW) 8,5
Continous output (kW) 5,5
Maximum tractive effort on starting (Mp) 4
Tractive effort on hourly operation (Mp) 2
Engine type
Track gauge (mm) 1 435


Tamping machine

Year of manufacture 1963
Manufacturer Plasser & Theurer Vienna, Linz
Manufacturing number
Wheel arrangement 1A
Genus Auto level tamping machine
Type
Owner Dresden Traffic Museum (VMD)
Museum's vehicle since 1993
Accessibility not always
plasser-1

Technical Data

Length over buffers (mm) 9 435
Complete wheelbase (mm) 2 700
Diameter of driving wheel (mm) 710
Height over rail (mm) 2 992
Operating weight (including all supplies) (t) 22,23
Maximum speed (km/h) 65
Power (horse powers) 120
Axle load (t) 11,2
Maximum tractive effort on starting (Mp)
Engine type   6 KVD SRL 14,5
Track gauge (mm) 1 435


SKL 3206
(Heavy Small Vehicle)

Year of manufacture 1959
Manufacturer Raw Schöneweide
Manufacturing number 35113/b76
Wheel arrangement B
Genus SKL Sw
Type
Owner Dresden Traffic Museum (VMD)
Museum's vehicle since 1995
Accessibility not always

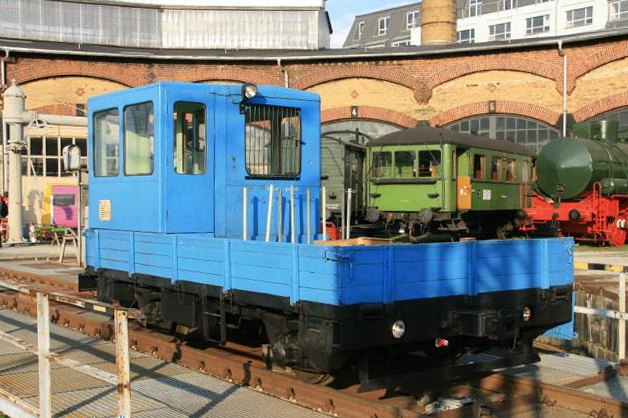

SKL-2

Technical Data

Length over buffers (mm) 5 550
Complete wheelbase (mm) 2 500
Diameter of driving wheel (mm)
Height over rail (mm) 2 710
Operating weight (including all supplies) (t) 5,8
Maximum speed (km/h) 45
Power (horse powers) 41
Axle load (t) 2,9
Maximum tractive effort on starting (Mp)
Engine type   4 NVD 12,5 SRL
Track gauge (mm) 1 435
SKL-1



SKL-3

Steam crane

Year of manufacture 1949
Manufacturer Krupp-Ardelt, Wilhelmshaven
Manufacturing number 3150
Wheel arrangement
Genus
Type 056
Owner Steam engine association "Dampflok Gemeinschaft 41 096"
Museum's vehicle since
Accessibility always
Dk 3150 1-klein

Technical Data

Length over buffers (mm) 1 050
Complete wheelbase (mm)
Diameter of driving wheel (mm)
Height over rail (mm)
Operating weight (including all supplies) (t) 91,7
Maximum speed (own drive) (m/min) 46
Maximum speed allowed (km/h) 80
Power (horse powers)
Axle load (t) 15,3
Maximum tractive effort on starting (Mp)
Drive   Steam
Track gauge (mm) 1 435
Wagon number   30 80 9740 023-5
ex Essen 6650
ex Essen 734 065
Maximum lift speed (m/min) 9,4
Maximum load (t) 25
Working radius (m) 13,70

Dk 3150 2-klein

The steam crane project

Driving force of this project is a group of active members in the museum association of Dresden-Altstadt. We want to present history vivid and preserve it as long as possible for our descendants.

Why a steam crane in our museum?

How does a large steam crane work? Who has ever witnessed an active steam crane? Of course, our steam crane will be fully revitalized. It should not only be presented but as well be active as a living creature in numerous railroad museum events. Numerous people should feel the fascination of the technique based on steam of the former ages. Due to the quasi-stationary operation everybody can get very close to the exhibit and experience the great adventure.

Why this crane?

A further reason for this project was to preserve the very last specimen which was retained as one complete entity up to date. In spite of its storage outside for at least 30 years, its overall condition has not degraded too much. Even during its "active times" it may hardly be stored inside a shed. Based on its well-preserved substance, it is really worth to kepp this crane for the future.

Why a vehicle of former Deutsche Bundesbahn in Dresden?

This vehicle represents a part of German history. It was put into service on November 3rd, 1949 and hence it may be assumed that it was ordered, constructed and built before the distinct division of Germany into the Bundesrepublik and the GDR. The steam enging was built in Eberswalde as early as 1942 and the boiler in Wuppertal earlier in 1949. Hence one may claim that if history had taken another direction, we should not rise this question at all.

What do we intend?

We intend to present the crane in a historically correct shape and in working condition. On top, we want to document its history in many ways - based on texts, images and movies. We as well want to demonstrate the crane in characteristic surroundings. In close cooperation with partners we want to preserve German industrial history for our descendants.

Further information about this project and the state of progress can be found in the internet - at present, sadly, in German only:
